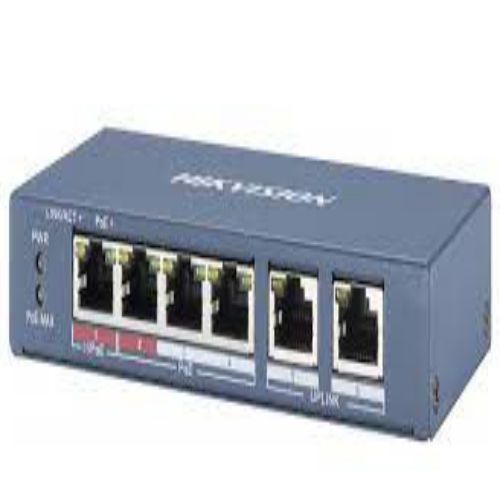

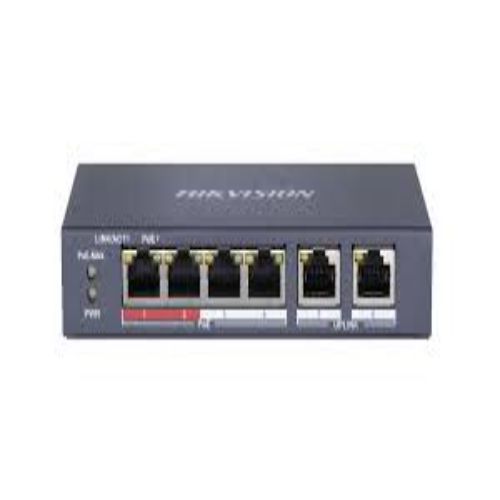

Switch mạng 4 cổng PoE , 2 cổng uplink 10/100Mbps DS-3E0106P-E/M
- 4 x 10/100M PoE ports, 2 x 10/100M RJ45 ports.
- IEEE 802.3at/af standard for PoE ports (Max. Power output for PoE is 35W).
- IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards.
- Overvoltage protection up to 6 kV for PoE ports.
- Transmission over long distances, up to 300m.
- Switching with performance appropriate for the transmission medium.
- Transfer with intermediate storage.
- Solid, high-strength metal housing.
- Reliable design without a cooler.
Đặc tính kỹ thuật
| Network parameters | |
| Number of ports | 4 PoE 10 / 100M RJ45 1 uplink port 100M |
| Port type | RJ45, full duplex, MDI / MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Switching method | Store-and-forward transfer |
| Work mode | Standard Mode (Default), Long Range Mode |
| High priority ports | Ports 1 and 2 |
| Long distance ports | Ports 1-4 |
| MAC address table | 4K |
| Switching speed | 1.6 Gbps |
| Packet Forwarding Rate | 0.8928 Mbps |
| Internal cache | 768 kbps |
| Power over PoE | |
| PoE standard | Ports 1-4: IEEE 802.3af, IEEE 802.3at |
| PoE Power Terminals | Ports 1-4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide simultaneous power. |
| PoE port | Ports 1-4 |
| Max. port capacity | Ports 1-4: 30W |
| PoE Power Budget | 35 watts |
| Dial function | |
| Long distance transmission of information | Ports 1-4: up to 300 m. |
| The main | |
| Coating | Metal, no cooler design |
| Gross weight | 0.52 kg |
| Net weight | 0.265 kg |
| Dimensions | 145 × 68.45 × 25.6 mm |
| Working temperature | -10 to +40 ° C |
| Storage temperature | -40 to +85 ° C |
| Working humidity | 5% to 95% (non-condensing) |
| Storage humidity | 5% to 95% (non-condensing) |
| Nutrition | 48VDC, 0.8A |
| Standby power consumption | less than 5 W |
| Max. power consumption | 38 watts |
| Power supply | 38 watts |
- Bảo hành: 24 tháng.
