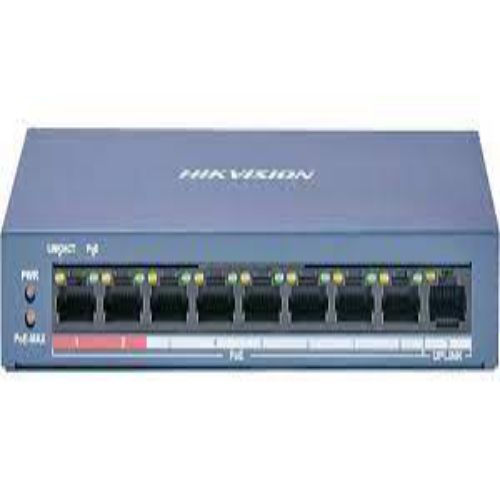

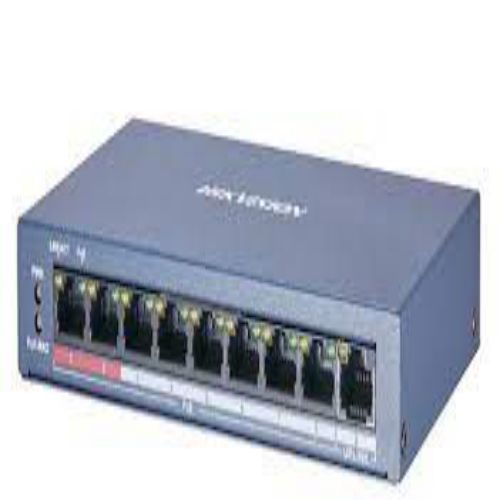

Switch mạng 8 cổng PoE 100M, 1 cổng uplink 10/100M , Layer 2 DS-3E0109P-E/M(B)
- 8 x 100M PoE ports and 1 x 100M Ethernet port.
- Supports IEEE802.3at/af.
- Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
- Supports high priority ports.
- Supports 8-core power supply.
- Up to 250m transmission distance.
- PoE port with 6 KV surge protection.
- Supports PoE output power management.
- 100M network access.
- Wire-speed forwarding and non-blocking design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Fan-free design with high reliability.
Đặc tính kỹ thuật
| Model | DS-3E0109P-E/M(B) |
| Network parameters | |
| Port number | 8 x 100M PoE ports, 1 x 100M Ethernet port. |
| Port type | RJ45 port, Full duplex, MDI/MDI-X adaptive |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Processing type | Store-and-forward switching |
| Ports with high priority | 1 to 2 ports |
| Ports for long-distance transmission | 1 to 8 ports |
| MAC address table | 2K |
| Exchange capacity | 1.8 Gbps |
| Packet forwarding rate | 1.339 Mpps |
| Internal cache | 1 Mbits |
| PoE power supply | |
| Power supply standard | IEEE 802.3af, IEEE 802.3at |
| Power supply cable core | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
| PoE port | 1 to 8 |
| Max. port power | 30W |
| Max. machine power | 60W |
| Mechanical structure | |
| Shell | Metal material, fan-free design |
| weight | 0.35 kg (0.77 lb) |
| Dimensions (L × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7inch × 1.1inch × 3.7inch) |
| Environment | |
| Operating temperature | 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F) |
| Storage temperature | –40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F) |
| Relative humidity | 5% to 95% (no condensation) |
| Power supply | |
| Power supply specification | 48 VDC, 1.35 A |
- Bảo hành: 24 tháng.
